High - Swimming Penetration Electrophoresis Paint For Commercial Vehicle

Name: High Swimming Penetration Electrophoresis Paint For Commercial Vehicle
Brand: HAOLISEN
Price: 1 USD

High - Swimming Penetration Electrophoresis Paint For Commercial Vehicle Manufactures

Brand Name : HAOLISEN

Model Number : HR-7001LB/HR-7010

Certification : IATF16949 , ISO9001

Place of Origin : Shanghai China （Mainland）

MOQ : Negotiation

Price : Negotiation

Supply Ability : 200 Tons Per Day

Delivery Time : 30-60 Days

Packaging Details : 50kg、60 kg、200kg、1000kg packaging barrels

Application field : Commercial vehicle

Performance : High throwing power

main ingredients : alcohol ether ; carbon black

Product Name : High - swimming penetration

Contact Now

High throwing power (Four-box method) penetration electrophoresis paint

Product Introduction :

HR-7001LB/HR-7010 Gray Cationic Epoxy Electrocoat for auto is the 8th generation electrophoretic coating researched and developed by HLS Paint (Shanghai) Co., Ltd. in cooperation with Germany HS International Chemical Industry Group. It represents modern technology of cathodic electrophoretic coating that is environment-friendly with high property and low cost. Such coating does not contain heavy metal like lead, tin, cadmium and mercury etc. It is a two-component, water-dispersed resin,meanwhile, it took in features of previous products, and can adapt galvanized steel sheet perfectly, almost can be applied to foundation coating of all metal, such as: cold and hot rolled steel sheet, galvanized steel sheet, aluminum products, zinc-aluminum alloy sheet and stainless steel sheet etc

This product features shown below:

The appearance of the coating is flat, delicate, smooth. 

Good stability of bath can adaptable for a longer updating cycle. 

The bath has strong anti-shrinkage and anti-pollution ability. 

Strong anti-corrosion properties, good salt spray resistance workpiece edge. 

High throwing power, internal and external uniformity. 

Coating fullness of good, better substrate hiding . 

suitable for auto body industry, such as cars, SUV and other models

The main component :

Pigment: Titanium pigment, carbon black, kaolin, antirust pigment	Additives: surface active agent, prevent shrinkage cavity agent, anti-yellowing agent.
Solvent: alcohol ether	Neutralizing agent: organic acid
Curing agent: totally enclosed multi-isocyanates	Matrix resin: polyurethane modified epoxy resin

The main supplier:

Material name	Supplier
Bisphenol A epoxy resins	Formosa Plastic Group / Kukdo / Dow Chemical
Polyisocyanates	Bayer
Amine hardendner	INTERSCAN / Huntsman Corporation
Titanium pigment	DuPont
Kaolin	Neuburg
Carbon black	Cabot Corporation

Product film performance :

Project		Indicator	Test standard
Appearance	Normal / Abnormal	Normal	Ocular estimate
Hardness	≥	2H	GB/T 6739
Cup drawing	mm,≥	6	GB/T 9753
Adhesion	level	0	GB/T 9286
Flexibility	mm	1	GB/T 1731
Impact	Kg.cm	50	GB/T 1732
Gloss	60°	50-80	GB/T 9754
Water resistance	h,(23±2)℃ ≥	240	GB/T 1733
Acid resistance	h(0.05N H2SO4) ≥	72	GB/T 9274
Alkali resistance	h(0.1N NaOH) ≥	72	GB/T 9274
Gasoline resistance	93#,24h	No bubbles, no wrinkles, no rust, no shedding	GB/T 9274
Interlayer adhesion	≤level	1	GB/T 9286
*Salt spray resistance	film thickness ≥ 20μm	1000	GB/T 1771
Stone strike resistance	level ≤	3.0	Q/DFLCM 5466

* Note: The substrate use the Bonder standard phosphating steel panel, crossed out unidirectional expansion eclipse ≤ 2mm.

Product Tags:

black edp coating

black epoxy coating

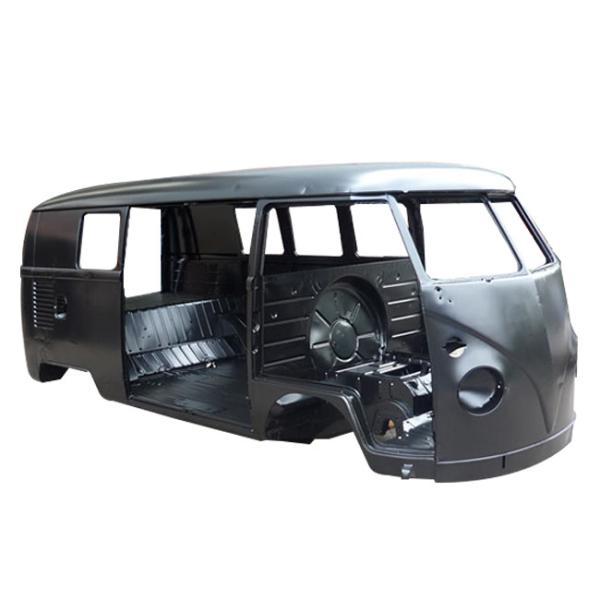

High - Swimming Penetration Electrophoresis Paint For Commercial Vehicle Images
